150CHINAPLAS, as the largest and top industry event in Asia, will be held in Shenzhen International Convention and Exhibition Centre (Bao'an) from 15th to 18th April. This year, Qiantian Intelligence will take ‘more efficient, safer, smarter’ as the theme, and bring Qiantian automatic mould change system to show up in Hall 12, Booth R71. And through the dynamic product demonstration area, static product display area, fun experience area and Qiantian Tavern four areas.
Qiantian Intelligent Equipment, Praise 22
Qiantian Intelligent Automatic Mould Changing System: Qiantian Intelligent Automatic Mould Changing System is a highly integrated and intelligent solution to achieve high efficiency, precision and automation of mould changing through the combination of electronically controlled permanent magnet technology, industrial connector docking module and intelligent control system.
Magnetic mould changing system adopts electronically controlled permanent magnet technology, through the electromagnet and permanent magnet cooperating to achieve 3-8 seconds (according to the tonnage of the injection moulding machine) of magnetizing and demagnetizing time, and quickly complete the installation and uninstallation of the mould on the back plate of the injection moulding machine.
The industrial connector docking combination module adopts highly reliable industrial connectors to achieve fast docking of electrical, hydraulic and pneumatic signals between the mould and the injection moulding machine. The whole set of automatic mould changing system can improve the efficiency of mould changing by 70% through the collaborative work of magnetic mould changing system and industrial connector pairs of plug combination module, which can realize the transformation of injection moulding industry from the traditional host mould changing to the one-key mould changing.
Fun experience area: measure your ‘a(chǎn)ttractiveness’?
Game format. 1:
1. The booth will be equipped with magnetic units with different magnetic suction force, and different magnetic suction force units correspond to different levels of prizes. 2;
2. Participants can choose the corresponding magnetic unit for the pulling challenge. 3;
3. Successful pulling of the magnetic unit will be rewarded with the corresponding prize;
Come to Qiantian booth to test your ‘a(chǎn)ttractiveness’!
Qiantian Static Products Display Area
Hall 12, R71

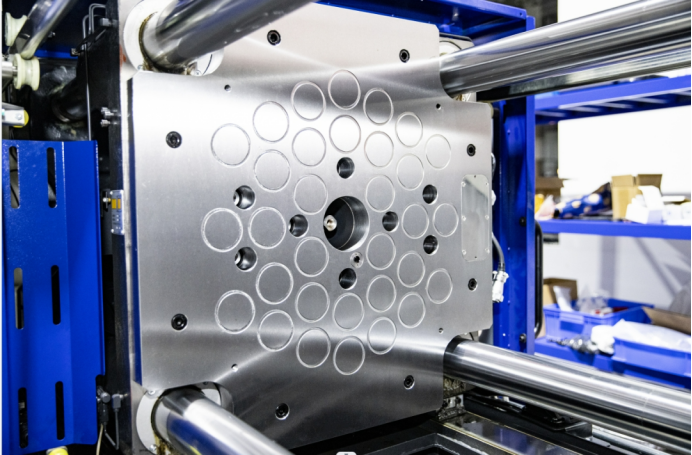

Qiantian Magnetic Plate: Qiantian Magnetic Plate is suitable for automated manufacturing scenarios that require frequent mould changes and meets the requirements of high-precision moulds for magnetic stability and response speed.
The all-steel structure of the magnetic plate design adopts a more modular circular module shape to optimise the magnetic force distribution, with smaller gaps between modules and more even magnetic force coverage. It is worth mentioning that the thinnest thickness of Hashida's magnetic plate is 45mm, which effectively shortens the magnetic force transmission path and improves the magnetic force response speed and mould change efficiency. At the same time, the system adopts constant-current magnetisation to ensure stable magnetic output, avoid magnetic changes caused by current fluctuations, and effectively protect the overall circuit to improve the accuracy of mould changing.

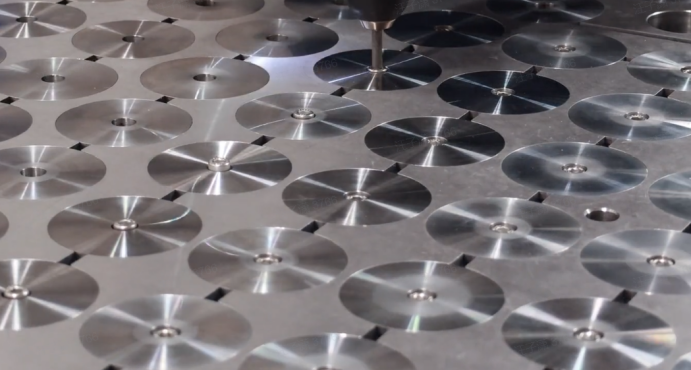

Qiantian Magnetic Unit: The core features of the Qiantian Magnetic Unit are high precision, high reliability and safety through modular pole design, double potting process and integration of measuring coils.
After the individual poles are potted and cured, they are mounted on a magnetic plate to prevent displacement or damage due to vibration or shock. Afterwards, the poles are connected to each other and potted again to ensure the structural strength and stability of the entire magnetic unit. At the same time, each electromagnetic module is equipped with a measuring coil, so that all points of the mould are monitored, and the tiny movements at each point of the mould can be monitored in real time. The measuring coil feeds the data back to the control system for high-precision positioning and motion control, eliminating the risk of short circuits.
Qiantian industrial connectors: Qiantian industrial connectors provide stable and safe connection solutions for enterprise production system.
The product adopts pairs of plug combination module design, support blind plug or key anti-error plug design, effectively avoid plugging and unplugging errors caused by a large number of joints. High mechanical strength, anti-vibration and anti-drag joints, can achieve a high degree of integration of electricity, liquid and gas, service life of more than 100,000 times.
Qiantian Bistro
During the exhibition period (15-18 April), Qiantian Bistro is open online. Coffee, frozen lemon tea, and speciality drinks are available for free! As always, if you are tired of watching the exhibition, come to the Bistro to rest and recharge your batteries~!
Claws and other application equipment, the products have been certified by TüV, CE, ISO and other industry authorities, is now widely used in new energy vehicles, 3C electronics, semiconductors, aerospace and other industries. At present, the company's headquarters is located in Shanghai, the production base is located in Zhejiang, another in Wuhan, Chongqing, Guangzhou, Changchun and other places have offices, is committed to providing customers with one-stop solutions. 2023, Qiaotian Intelligence has been awarded by the Geely Houtou Capital, WoNiu Capital, the United States of America's capital of the strategic co-investment.
